You have many problems when you want clear signals in electronics. Ferrites help stop unwanted noise. They help your cables work better. In Saudi Arabia, more high-frequency electronics are being used. Strong cable assemblies are now very important. Small problems can cause big losses in wireless and 5G systems.
|
Factor |
Impact on Cable Assemblies |
|---|---|
|
High-frequency demand |
Ferrites help keep signals clear and lower interference |
|
Design flaws |
Small mistakes can cause big signal loss |

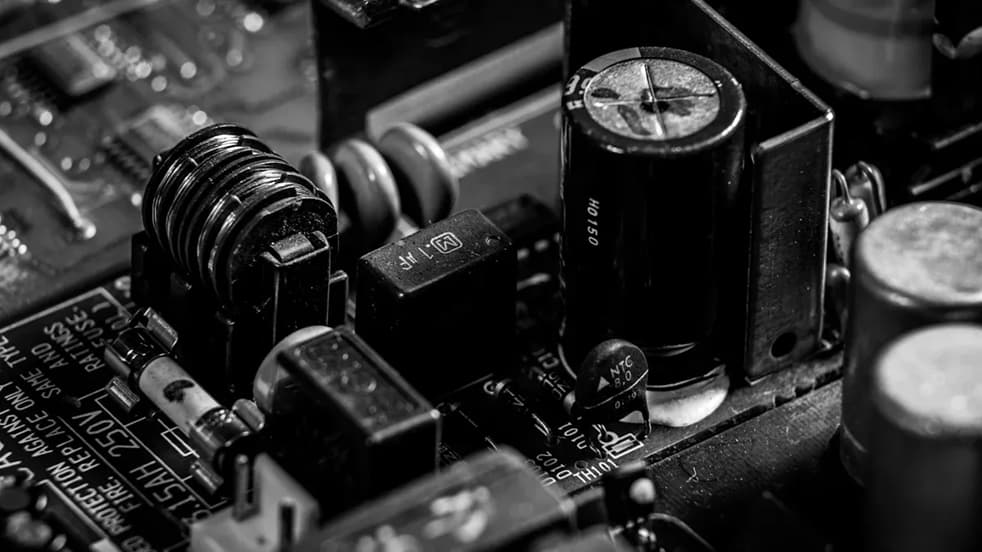

Ferrites in Electronics
EMI Suppression
Electronic devices can have many sources of electromagnetic interference, or EMI. Things like motors, transformers, and power supplies can make unwanted noise. Ferrites help control this interference. Ferrite beads and cores block high-frequency signals that cause problems. You can put ferrite beads on circuit board traces to lower EMI. Ferrite cores stop cables from acting like antennas. This helps reduce EMI noise that spreads out. Ferrite filters get rid of high-frequency electrical noises. This makes your devices work better and more reliably.
Tip: Ferrites do not need extra power. You can use them in small spaces. They are good for making lots of devices and for fixing things.
In wireless devices, ferrite-loaded absorbers can cut interference by up to 15 dB. This makes reception better, especially in LTE and 5G systems. Ferrites are cheaper than shielded cables and active filters. You can fix device problems without spending a lot of money.
Signal Quality
You want your devices to have clear signals. Ferrites help keep signals clean in audio, video, and data systems. By lowering EMI, ferrites let your devices work without problems. Ferrite beads act like low-pass filters. They block high-frequency noise but let low-frequency signals go through. This keeps your data and power lines working well.
-
Ferrites block high-frequency noise.
-
They help signals stay strong and clear.
-
You can use them in power supplies and communication devices.
|
Benefit |
Description |
|---|---|
|
Noise Suppression |
Ferrite beads block high-frequency noise in cables and circuits. |
|
Improved Signal Integrity |
Ferrites help keep signals strong and clear. |
|
Versatility |
You can use ferrites in many devices, like smartphones and robots. |
Common Applications
You can find ferrites in many electronic devices and cable assemblies. They are important in power supplies, wireless charging, and medical equipment. Ferrites help control power and block electrical noise in cars. You also see them in factory machines, where they help things run smoothly.
|
Device Type |
Use Case Description |
Benefits |
|---|---|---|
|
Power Supplies for Consumer Electronics |
Used in smartphones, tablets, and laptops for better energy use. |
More energy efficiency, smaller size, and less electromagnetic interference. |
|
Wireless Charging Systems |
Needed for energy transfer in wireless chargers for phones and electric cars. |
Better charging and less heat. |
|
Medical Imaging and Diagnostic Equipment |
Used in MRI machines and portable ultrasound devices for high-frequency fields. |
Better image quality and lower costs. |
|
Automotive Electronics |
Used in electric power steering and battery units in electric cars. |
Better energy use and safer cars. |
|
Industrial Automation and Control Systems |
Used in controllers and communication devices in factories. |
More reliable systems and better safety. |
You also find high temperature ferrite magnets in USB, HDMI, and Ethernet cables. They block radio frequency interference and electromagnetic noise. This helps data move faster and with fewer mistakes. Ferrites block unwanted signals above 1 MHz and can work up to 1 GHz. You can pick different ferrite materials, like MnZn and NiZn, for different frequencies.
Note: Ferrites are common in consumer electronics, but you also see them in motors and transformers. They work well in hot and tough places.
You can use ferrites in power systems for smartphones, tablets, and electric cars. They help control power and block noise in cars and factories. Ferrites are also used in radio transmitters and receivers, where high-frequency work is important.
What Are Ferrites?
Ferrites are very important in electronics. You see them in lots of devices because they help stop unwanted electrical noise. These materials are made from iron oxide and other metals like manganese or zinc. Thick ferrite disc magnets work well in many temperatures and frequencies. They have high resistivity, so they do not turn much energy into heat. This helps your devices work better. Ferrites absorb electromagnetic energy and keep signals clean.
Ferrite Beads and Cores
Ferrite beads and cores block high-frequency noise in cables and circuits. Ferrite beads are small and shaped like cylinders. You often see them on power supply lines or signal cables. They act like resistors for high-frequency noise and soak up that energy. Ferrite cores come in many shapes and sizes. You wrap wires around them to filter out unwanted signals. The table below shows how ferrite beads and inductors are different:
|
Feature |
Ferrite Beads |
Inductors |
|---|---|---|
|
Function |
EMI and RFI filtering, convert high-frequency signals into heat |
Store energy, convert electrical energy into magnetic energy |
|
Structure |
Small, cylindrical, made of ferrite material |
Metal coil wrapped around a magnetic core |
|
Impedance |
High impedance to high-frequency signals, varies with frequency |
Constant impedance across many frequencies |
|
Frequency Range |
Effective for high frequencies (tens of MHz to GHz) |
Wide range, including lower frequencies |
|
Applications |
Power supply and signal line noise filtering |
Power electronics, RF circuits, energy storage |
Tip: Ferrite beads are best for blocking high-frequency noise. Inductors are good for storing energy in circuits.
Types of Ferrites
There are different types of ferrites for different jobs. Manganese-zinc ferrite has high permeability and works well below 5 MHz. Nickel-zinc ferrite has higher resistivity and is good for frequencies above 1 MHz. You pick the type that fits your device’s needs.
|
Ferrite Type |
Characteristics |
|---|---|
|
Manganese-zinc ferrite |
Higher permeability, good for low frequencies |
|
Nickel-zinc ferrite |
Higher resistivity, best for high frequencies |
|
Application Range |
MnZn for below 5 MHz; NiZn for above 1 MHz except in some inductors |
Physical Forms
Ferrites come in many shapes. You see beads, ring cores, and blocks. Ferrite beads are small and fit easily on cables. Ring cores have a round shape and filter high-frequency noise but let low-frequency signals pass. You get the best results when you put ferrite cores at the lower impedance end of a cable. This lowers common mode currents and makes signals better. If you put them at the wrong end, you might get more noise instead of less.
-
Ferrite ring cores turn noise into heat.
-
Putting ferrite cores in the right place helps your cables work better.
You need to choose the right shape and spot to get the most from ferrites in your electronics.
How Ferrites Work
Electrical and Magnetic Properties
Ferrites have special features that help electronics. They control unwanted noise in devices. Complex permeability helps ferrites manage magnetic fields. This blocks noise in cables and devices. Ferrites have low electrical conductivity. This means they do not waste much energy. Devices stay cool and work well. Ferrites also have reduced eddy current losses. This helps them handle magnetic noise better. Signals stay clean and there is less interference. These features make ferrites a smart choice for electronics.
Noise Filtering Mechanism
Ferrites are like quiet guards for cables. They block high-frequency noise on wires. Ferrites act as filters for signals. They let good signals pass but stop noise. Ferrites change high-frequency energy into heat. The heat goes away safely. You see ferrite beads on USB and HDMI cables. They keep audio and video signals clear. You do not need extra power or hard circuits. Just snap a ferrite bead onto your cable. It starts working right away.
Tip: Put ferrite beads close to the noise source for best results.
Frequency Range
You must pick the right industrial strength disc ferrite magnet for your job. Different types work best at different frequencies. The table below shows which ferrite fits each use:
|
Ferrite Type |
Ideal Frequency Range |
Applications |
|---|---|---|
|
Nickel-Zinc (NiZn) |
2 MHz up to several hundred MHz |
Baluns, ununs, high-frequency RFI/EMI suppression |
|
|
70 MHz to several GHz |
Common-mode inductors |
|
Manganese-Zinc (MnZn) |
1 kHz – 1 MHz |
Switch-mode power transformers, low-frequency RFI/EMI suppression |
|
|
2 MHz – 250 MHz |
Reducing unwanted RF noise |
|
|
Below 5 MHz |
Common-mode chokes |
Nickel-zinc ferrites are good for high-frequency problems. Manganese-zinc ferrites work better for lower frequencies. When you match the ferrite type to your needs, you get the best noise protection.
Selecting and Installing Ferrites
Choosing the Right Ferrite
You must pick the right ferrite for your problem. First, find out what kind of noise you want to stop. Choose a ferrite that works at the same frequency as your device. Make sure the ferrite’s stopband does not match your signal’s frequency. Always check that the saturation current is more than your cable’s current. This stops the ferrite from getting too hot.
When picking a ferrite, look at its material and shape. Manganese ferrite is good for low frequencies. Zinc ferrite is better for high frequencies. The size and how you put it on also matter. A ferrite that fits tightly on your cable blocks more noise.
|
Characteristic |
Description |
|---|---|
|
Type |
Flat or round shape for different cables. |
|
Design |
Style and setup for your device. |
|
Impedance @ Frequency |
How much the ferrite blocks signals at certain frequencies. |
|
Material |
Manganese for low, zinc for high frequencies. |
|
Inner Dimension |
Size of the hole for your cable. |
|
Outer Dimension |
Outside size for fitting in your device. |
Placement Tips
You get the best results when you put ferrites close to the noise source or connector. Use the right size so the ferrite fits tightly. Do not make sharp bends in your cable when making loops. If you move cables a lot, use split cores for easy changes. For long cables, you can use more than one ferrite for better noise control. Always test your setup after you put on ferrites and change things if needed.
Tip: Looping the wire through the ferrite two or three times can block more noise.
Hold the ferrite in place with zip ties or heat-shrink tubing. This keeps it from moving, even if you move the cable.
Common Mistakes
Many people make mistakes when putting on ferrites. If you push too hard, the ferrite can break or lose its power. Ferrites are easy to break, so be gentle. Do not use too much current, or the ferrite can get hot and stop working. Do not stack ferrites on top of each other. Always make sure the ferrite is closed tightly around the cable. If you wind the cable wrong, you can hurt the ferrite and make it work less well.
Note: For outdoor or hot places, use temperature-resistant ferrites so they do not fail.
Ferrites are very helpful in electronics and cable assemblies. They give you many good things. The table below shows how ferrites help:
|
Benefit/Application |
Description |
|---|---|
|
Energy Efficiency |
Ferrite cores help save energy in things like smartphones. |
|
EMI Reduction |
Ferrites soak up bad signals and help devices work better. |
|
High-Density Data Storage |
Ferrites let hard drives and tapes hold more data. |
|
Enhanced Signal Quality |
Ferrites help tune signals in 5G and IoT devices. |
|
Automotive Applications |
Ferrites help cars be safer and use less energy. |
You need to pick and put in ferrites the right way. This keeps your power lines and signal wires safe. Good placement helps your devices last longer. Use these ideas to stop noise and keep signals clear.
